Fluke 170 Series
Digital Multimeters
Test Tools that set the new
standard with an unrivalled combination of performance and durability
- True rms measurements, speed and accuracy
- Feature and function-rich design based on extensive user
research
- Lifetime warranty and latest CAT IV safety rating

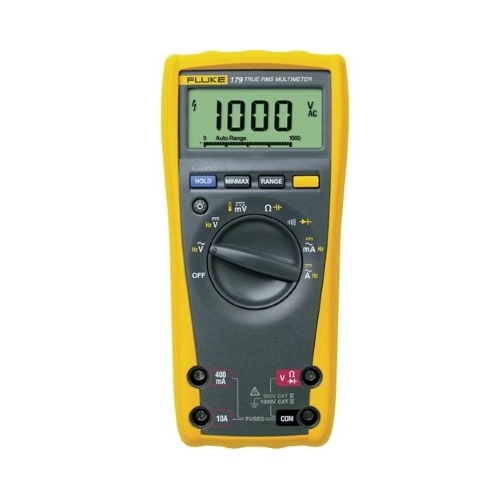

The new Fluke 170 Series, which includes the 175, 177 and 179
models, was developed for use in environments that range from relatively "clean"
bench areas to some of the harshest work environments known to man. The 170 Series is
built based on extensive research into what this broad range of users requires in a DMM.
Research clearly showed that users basically want the impossible: an affordable,
high-performance, feature and function-rich multimeter that is easy to use and can take
knocks inside and out. That’s just what they get with the 170 Series |
Setting
the new
multimeter standard
The three models of the
new 170 Series are the new benchmarks for general purpose multimeters. They set the
standard with a combination of precision, features, ease-of-use, safety and reliability
- True RMS voltage and current measurements
- 0.09% basic accuracy (177, 179)
- 6000 count resolution
- Digital display with analog bargraph and
backlight (177, 179)
- Manual and automatic ranging
- Display Hold and Auto Hold
- Frequency and capacitance measurements
- Resistance, continuity and diode
measurements
- Temperature measurements (179)
- Min-max-average recording
- Smoothing mode allows filtering of rapidly
changing inputs
- Easy battery exchange without opening the
case
- Closed case calibration through front panel
- Ergonomic case with integrated protective
holster
- EN61010-1 CAT III 1000V / CAT IV 600V
- Measures twice as fast as other multimeters
|

|
Safety
conformance
All inputs are protected to IEN61010-1 CAT IV 600V/CAT
III 1000V. UL, CSA, TÜV listed and VDE Pending |
|
Download
Data Sheet (PDF 172.6Kbytes)
Download
Extended Specifications of 170 Series (PDF 43.3Kbytes)
|
| Voltage DC |
177 - Accuracy* ± (0.09%+2)
179 - Accuracy* ± (0.09%+2)
175 - Accuracy* ± (0.15%+2)
Max. Resolution 0.1 mV
Maximum 1000 V |
| Voltage AC |
Accuracy* ± (1.0%+3)
Max. Resolution 0.1 mV
Maximum 1000 V |
| Current DC |
Accuracy* ± (1.0%+3)
Max. Resolution 0.01 mA
Maximum 10 A |
| Current AC |
Accuracy* ± (1.0%+3)
Max. Resolution 0.01 mA
Maximum 10 A |
| Resistance |
Accuracy* ± (0.9%+1)
Max. Resolution 0.1 W
Maximum 50 MW |
| Capacitance |
Accuracy* ± (1.2%+2)
Max. Resolution 1 nF
Maximum 10,000 µF |
| Frequency |
Accuracy* ± (0.1%+1)
Max. Resolution 0.01 Hz
Maximum 100 kHz |
| Temperature |
179 - Accuracy* ± (1.0%+10)
Max. Resolution 0.1°C
Range -40°C/400°C |
| Note |
* Accuracies are best accuracies for each function |
|
|
| Overvoltage category |
EN 61010-1 to 1000 V CAT III.
EN 61010-1 to 600 V CAT IV. |
| Agency Approvals |
UL, CSA, TÜV listed and VDE Pending |
|
|
Environmental Specifications |
|
| Operating Temperature |
-10°C to +50°C |
| Storage Temperature |
-30°C to +60°C |
Humidity
(Without Condensation) |
0% - 70% (35°C -50°C)
0% - 90% (0°C - 35°C) |
|
| Mechanical
& General Specifications |
|
| Size |
430 x 90 x 185 mm |
| Weight |
420 g |
| Warranty |
Lifetime |
| Battery life |
Alkaline: ~200 hours typical, without backlight |
|
| Model Name |
Product Description |
Fluke 175 / 177 / 179
|
Digital Multimeter
Included Accessories
- TL75 Test leads
- Installed 9V battery
- Users manual
- 80BK Temperature Probe (179 only)
|
Optional Accessories
| Model
Name |
Product
Description |
| * |
All
Fluke Current Clamps |
| * |
All
Fluke Test Leads |
| 80AK |
Thermocouple
Adapter (179 only) |
| 80K-40 |
High
Voltage Probe |
| 80K-6 |
High
Voltage Probe |
| 80-PK-IR |
Temperature
Probe |
| 80T-150U |
Universal
Temperature Probe |
| 80T-IR |
Temperature
Probe |
| 80TK |
Thermocouple
Module |
| C510 |
Leather
Meter Case |
| C90 |
Padded
Meter Case |
| FOM |
Fiber
Optic Meter |
| PV 350 |
Pressure
Module |
| TPAK |
The
meter hanging solution |
