Description
Feature-rich tools for debugging mixed signal designs.

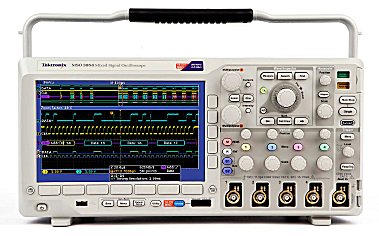

With up to 500 MHz bandwidth and 2.5 GS/s sample rate, the MSO/DPO3000 Mixed Signal Oscilloscope Series provides the performance you need for many of today's mainstream applications. With as many as 20 channels, you can analyze analog and digital signals with a single instrument.

Combine that with automated serial and parallel bus analysis, innovative Wave Inspector^® controls, and the MSO/DPO3000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.


Ease of Use Features

• Wave Inspector^® Controls Provide Easy Navigation and Automated Search of Waveform Data.
• 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis.
• TekVPI^®  Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units.
• 9-inch (229mm) WVGA Widescreen Color Display.

Connectivity

• USB 2.0 Host Port on both Front and Rear Panels for Quick and Easy Data Storage, Printing and Connecting a USB Keyboard.
• USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge^® compatible Printer.
• Integrated 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector.

Optional Serial Triggering and Analysis

• Automated Serial Triggering, Decode, and Search Options for:
  I²C, SPI, CAN, LIN, RS-232/422/485/UART, and I²S/LJ/RJ/TDM.

Mixed Signal Design and Analysis (MSO Series)

• Automated Triggering, Decode, Search on Parallel Buses.
• Multichannel Setup and Hold Triggering.
• MagniVU™ High-speed Acquisition Provides 121.2ps Fine Timing Resolution on Digital Channels.

Optional  Application Support

• Power Analysis.
• HDTV and Custom Video Analysis.
