Description
Feature-rich tools for debugging mixed signal designs.

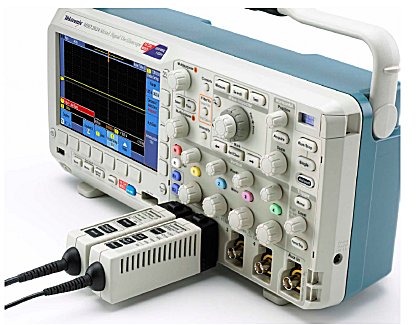

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000 Mixed Signal Oscilloscope Series provides advanced debug features at an entry level price. With as many as 20 channels, you can analyze analog and digital signals with a single instrument.

Combine that with automated serial and parallel bus analysis, FilterVu™ low-pass filter and innovative Wave Inspector^® controls, and the MSO/DPO2000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.


Benefits

• Analyze analog and digital signals on a single instrument for system-level
  troubleshooting of complex designs.
• Quickly discover glitches and infrequent events with a 5,000 wfm/s waveform capture rate and intensity-graded display.
• Rapidly capture signal anomalies with over 125 available trigger combinations,
  including setup/hold, serial packet content and parallel data.
• Easily search, mark and navigate long record lengths to find all occurrences of your event.
• Simplify analysis of your device with 29 automated  measurements and FFT analysis.
• Quickly debug your parallel bus with automated trigger, decode and search.
• Quickly debug common serial buses with automated trigger, decode and search - I²C, SPI, CAN, LIN,
  and RS-232/422/485/UART.
• Easily filter out unwanted noise without losing sight of important anomalies or glitches
  with the innovative peak detect glitch capture.

Models in the MSO/DPO2000 Series
