TDS2000C Series Digital Storage Oscilloscope - Features/Benefits

Tektronix: The World's Standard in Oscilloscopes
Eight out of ten engineers around the world trust Tektronix to help them debug and test tomorrow's designs faster. With the broadest portfolio of digital oscilloscopes available, the richest set of product features, the most extensive analysis capability and their award-winning service and support. Tektronix has the right oscilloscope to meet your need.

	Ease-of-Use Features 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis. Built-in Waveform Limit Testing. Automated, Extended Data Logging Feature. Autoset and Signal Auto-ranging. Built-in Context-sensitive Help. Probe Check Wizard. Multiple-language User Interface. 5.7 in. (144mm) Active TFT Color Display. Small Footprint and Lightweight - Only 4.9 in. (124mm) Deep and 4.4 lb (2 kg).

Features and Benefits Key Performance Specifications 200 MHz, 100 MHz, 70 MHz, 50 MHz Bandwidth Models. 2 and 4 channel Models. Up to 2 GS/s Sample Rate on All Channels. 2.5k point Record Length on All Channels. Advanced Trigger including Pulse Width Trigger and Line-selectable Video Trigger.	Connectivity USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard. USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge^® compatible Printer. Includes National Instrument's LabView SignalExpress™ TE Limited Edition and Tektronix OpenChoice Software for Connecting to Your Bench for an Intelligent Debug.

Models in the TDS2000C Series:

Model	Bandwidth	Sample Rate	Record Length	Channels
TDS2001C	50 MHz	500 MS/s	2.5 k	2
TDS2002C	70 MHz	1.0 GS/s	2.5 k	2
TDS2004C	70 MHz	1.0 GS/s	2.5 k	4
TDS2012C	100 MHz	2.0 GS/s	2.5 k	2
TDS2014C	100 MHz	2.0 GS/s	2.5 k	4
TDS2022C	200 MHz	2.0 GS/s	2.5 k	2

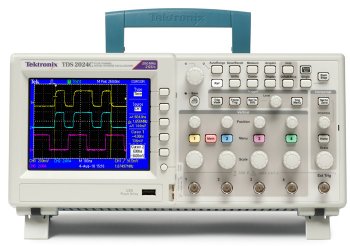

TDS2024C	200 MHz	2.0 GS/s	2.5 k	4

Note: Sample Rate applies to all channels
