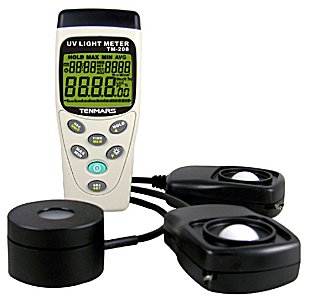

TM-208...Data
Logging 3-in-1 UVA Light Meter |
|
|
|
 |
Features
- Three in one light sensor design. Select UV power, Solar or
Illumination.
- Min/Max/Avg and Data Hold functions.
- Auto power Off with disable function.
- Low battery indication.
- USB interface. Data logging capacity 45000 records.
- Display backlit.
- Real-time clock with calendar.
- Relative (REL) function/Zero adjustment.
Application
- Warehouses, factories, office buildings, schools, libraries,
hospitals, building security.
|
|
|
UVA
- Highly reliable direct reading instrument designed expressly for
measuring light intensity at the water plane of mask aligners.
- UV curing light sources, and any other UV light source.
Solar Power Features
- The accuracy is ±3% at 1000 Watts/m2.
- Solar power research.
- Physics and optical laboratories.
- Measure Watts/m2 or Btu/ft2.h.
- Test PV modules in the field.
Illumination
Features
- According to JISC 1609: 1993 and CNS 5119
general 'A' class specification.
- Spectral response close to CIE luminous
spectral efficiency.
- Measuring intensities of illumination in unit
of Lux or Foot-candle.
- Silicon photodiode and filter. Cosine angular
corrected.
|
|
Specifications |
|
Measurement |
UVA Measurement |
Illumination Measurement |
Solar Measurement |
|
Ranges |
40µW, 400µW,
4000µW, 20mW |
40, 400, 4000, 40000, 400000 Lux
40, 400, 4000, 40000 Foot-candles |
40, 400, 1000 W/m2
13, 127, 634 Btu/ft2.h |
|
Resolution |
0.01µW, 0.1µW,
1µW, 0.01mW |
0.01, 0.1, 1, 10, 100 Lux
0.01, 0.1, 1, 10 Foot-candles |
0.01, 0.1, 1 W/m2
0.01, 0.1, 1 Btu/ft2.h |
|
Accuracy |
±3% |
±3% (Calibrated
to Standard
incandescent lamp 2856°K)
±6% (other visible light source) |
±5% |
|
Wavelength |
320nm to 390nm |
400nm to 1100nm |
400nm to 1100nm |
|
Datalogging Capacity |
4500 records |
|
Sample Time |
0.4 second approx. |
|
Data Output |
USB serial interface |
|
Power Supply |
9 volt battery (NEDA 1604, IEC 6F 22,
JIS 006P) |
|
Battery Life |
100 hours approx. |
|
Accessories |
Instruction manual |
|
9 volt battery |
|
Carrying case |
|
UVA sensor probe |
SOLAR sensor probe |
Illumination sensor probe |
|
Dimensions (instrument) |
130mm (L) x 55mm (W) x 38mm (D) |
|
Dimensions (probes) |
49mm (D) x 28mm (H) |
80mm (L) x 55mm (W) x 25mm D) |
80mm (L) x 55mm (W)
x 25mm (D) |
|
|
|
