DLM6000/DL6000 MSO and DSO Series Wide Bandwidth Oscilloscopes

4 ch Analog + 32-bit Logic
Line-up includes 500MHz, 1GHz, 1.5GHz bandwidth models
High speed waveform acquisition and History Memory
Intuitive Operation and High Performance

Model	DLM6054	DLM6104	DL6054	DL6104	DL6154
Frequency Bandwidth	500 MHz	1 GHz	500 MHz	1 GHz	1.5 GHz
Analog Input Channels	4	4	4	4	4
Logic Input	16/32 bit	16/32 bit	-	-	-

Overview
Yokogawa's DLM6000 series digital and mixed signal oscilloscopes boast fresh physical and on-screen interfaces, based on extensive market research and user feedback. The series incorporate dedicated backlit buttons for the most commonly accessed settings, and unique Yokogawa controls, like the 5-way selector button and spring loaded 'jog shuttle' control.

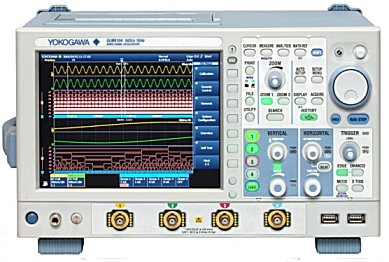

Yokogawa DLM6104 Mixed Signal Oscilloscope

Never miss the waveform you want

High acquisition rate unchanged even when displaying logic signals. During continuous measurement: Up to 25,000 times per second per channel.
In 'N' Single mode: Up to 2.5 million times per second per channel maximize your probability of catching anomalies with the high acquisition rate, which does not change even when you observe analog and logic signals simultaneously.

DL6000/DLM6000 Series Datasheet (PDF)
(documents are in PDF format and will open in a new window)

Never miss abnormal waveforms with high-speed acquisition and history memory.

You can preserve up to 2,000 captures of actual waveform data (not screen images), and after measurement has stopped, you can review past waveforms individually for detailed analysis.
Search and Zoom.
Automated measurement of waveform parameters.
Variety of advanced computations.
You can analyze any past waveforms in detail by recalling them from memory.

On most oscilloscopes, to observe and analyze abnormalities such as unpredictable noise in detail, you have to devise clever trigger settings and re-measure the event. With the DL6000/DLM6000, there is no need to re-measure the phenomena because once the event occurs, you can use the History Memory function to review past waveforms that were originally displayed on screen.

Serial bus analysis function (option)
With an Auto Setup function for serial bus analysis (option), the DL6000/DLM6000 series automatically performs the tedious task of entering settings. You just need to select the bus type and input channel, and the oscilloscope will automatically recognize the waveform, set parameters such as bit rate, and display analysis results instantaneously. Also, two different busses can be analyzed at the same time, E.G. you can analyze a CAN and LIN bus simultaneously.

Power supply analysis function (option)
By using combinations of differential and current probes, you can evaluate the switching loss or analyze the safe operating area in power supply waveforms. Through statistical computation you can also measure multiple switching waveforms and display the loss on a per-period basis in lists and trends, or display statistics on the aggregate loss of up to 2,000 switching waveforms stored in History Memory. If precise calculations are required, a correction function and High Resolution mode are available.
